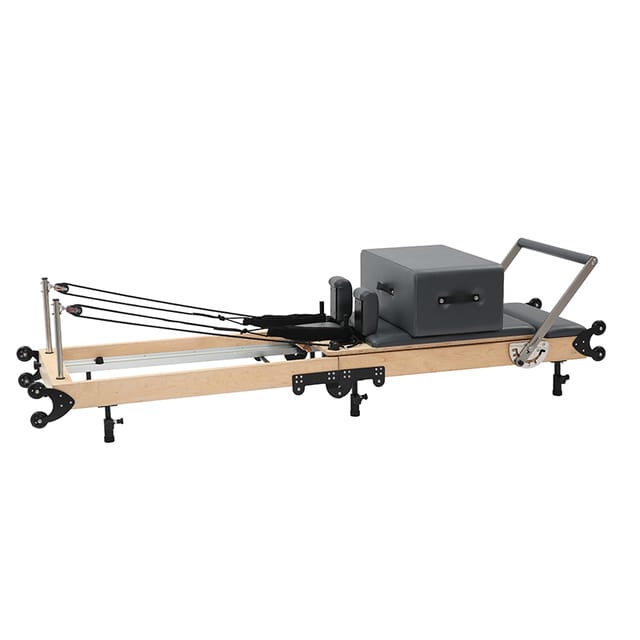

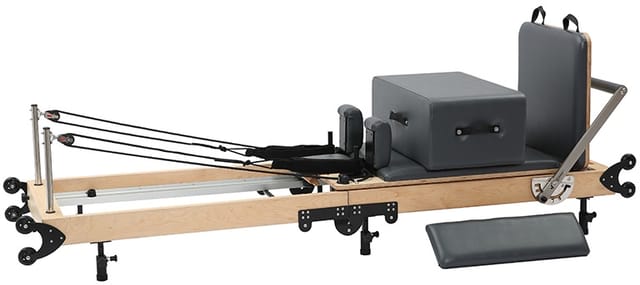

Afton Luma Foldable Reformer

Core Construction

• Frame Material: High-grade North American maple

• Finish: Sanded and polished 6 times, sealed with thick wood wax oil

• Design Feature: Foldable base frame for easy transport and compact storage

• Platform Height: 11"/13" (adjustable using star nut and gear lock)

• Foot Leveling: Adjustable feet ensure ground contact for balance

• Handling Warning: Do not clean wood with wet cloth; dry cloth only

Dimensions & Weight

• Reformer Size: 249 cm × 61.5 cm × 27/33 cm (98” × 24” × 11”/13”)

• Net Weight: 75 kg (165 lb)

• Gross Weight: 105 kg (231 lb)

• Shipping Size: 145 cm × 73 cm × 60 cm (57” × 29” × 24”)

• Packaging: Durable plywood crate

 Resistance & Spring System

• Total Springs: 5

  • 1 × Red – Heavy (60 lb)

  • 2 × Blue – Medium (26 lb)

  • 2 × Yellow – Light (19 lb)

• Resistance Levels: 3-level gear bar adjustment system

• Spring Origin: Imported from Japan (piano wire steel)

• Spring Lifespan: 2 years or 3,000 hours (replace earlier if deformed or corroded)

Functional Elements

• Track: Aviation-grade aluminum, thick and smooth with low-friction glide

• Carriage System: High-precision wheel and track for silent movement

• Headrest: Adjustable

• Shoulder Rests: Insertable and secure with firm attachment

• Footbar: Multi-position adjustable; must support jumpboard if used

• Jumpboard: Compatible; must always be used with handle bar support

• Pulleys: Smooth-glide, adjustable tower columns with 3 stop positions

• Ropes & Handles:

  • Climbing-grade ropes with silent loop straps

  • Dual loop handles with secure stitching

Folding Mechanism

• Folding Steps:

  1. Remove both side fenders

  2. Hang spring to top gear

  3. Adjust bar to final gear

  4. Grip the handle and raise the unit vertically

• Important Warning: Do not attempt folding without fender removal; may cause frame damage

• Storage Position: Fold vertically; place on even ground and away from heavy activity

Safety Standards

• Keep 1-meter clearance on all sides when in use

• Always attach at least one spring when not in use

• Never use without supervision if unfamiliar with reformer movement

• Check for loose screws, nuts, shoulder rests, and springs before each session

Maintenance

• Daily: Dust wipe track, check rope fray, inspect springs

• Monthly: Tighten all screws, nuts, bolts, especially under carriage and headrest

• Upholstery Care: Avoid sharp objects or jewelry while using; clean with a dry cloth only

• Wood Maintenance: Avoid sun exposure and never use water-based cleaning

• Tower Column: Lock securely using nut and ball-gear safety system

Warranty

• Frame, Platform, Springs: 1 year

• Wear Parts (ropes, straps, wheels): 6months

• Upholstery: 90 days (material defect only – excludes scratches, stains, cuts)

Ideal For

• Compact studios needing space-saving options

• At-home Pilates enthusiasts seeking tower versatility

• Multi-function setups with limited floor area

• Traveling instructors or physiotherapy units

Why the Luma Folding Reformer Stands Out

• Combines a full tower + reformer in a foldable body

• Premium maple + aviation alloy + Japanese springs

• Studio-level functionality in a compact, mobile frame

• Smart design, silent glide, and 3-level resistance system make it one of the best foldables available
