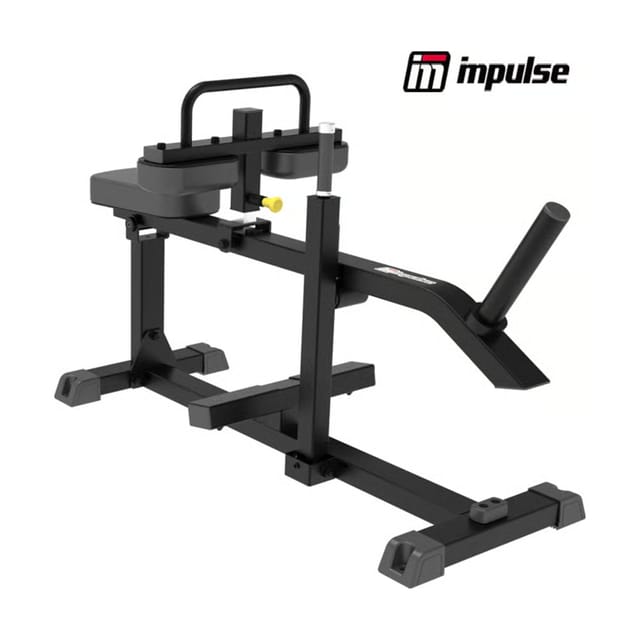

Impulse IFP1623 Seated Calf Raise
https://www.aftonfitness.com/s/55b31c5573bc5c994472673c/6adc9834768546e4849a3197/afton-img-impulse-ifp1623-seated-calf-raise.jpg
SKU-9K30ENWBJ7
| Max User Weight | 150kg |
|---|---|
| Applicable Height Range | 155cm-195cm |
| Resistance | Plate Loaded |
| Function | Monofunctional |
| Maximum load | 100kg |
| Targeted Muscle | Gastrocnemius Muscle， Soleus |
| Targeted Body Part | Lower Limbs |
| Product Dimension | 1368*566*849mm |
| Net Weight | 38.5kg |
| Gross Weight | 43kg |
| Certification | / |
| Tube Specification – Function Part | □50.8*2.5 □50.8*76.2*2.5 |
| Tube Specification – Connection Part | □50.8*76.2*2.5 |
| Tube Specification – Bottom Part | □50.8*76.2*2.5 |
| Tube Specification – Regulating Tube Part | □38.0*2.0（201不锈钢） |
| Tube Specification – Handle Tube Part | φ25.2*2.5 |
| Pedal | 3mm（Anti-skid Paint Coated） |
| Toner | BG304-331 DG506 |
| The Material of Standard Shroud | / |
| Optional Shroud | / |
| The Material of Optional Shroud | / |
| Upholstery Stitching | / |
| Upholstery Stuffing | / |
| Upholstery Cover | / |
| Training Instruction | / |
| Seat adjustment | / |
| Seat adjustment range | / |
| Back Cushion Adjustment | / |
| Back Cushion Adjustment Range | / |
| Leg Cushion Adjustment | Draw-out Elastic Bolt + 7 level |
| Leg Cushion Adjustment Range | 150mm |
| Foam Adjustment | / |
| Foam Adjustment Range | / |
| Thickness of Back Cushion | / |
| Leg Cushion Specification | 230*150*70mm |
| Transmission Belt | / |
| Handle Bar Type | Circular Tube Handle |
| Handle Bar Cover | TPV（Aluminum baffle ring and aluminum head） |
| Main Pulley Material | / |
| Guide Rod Specification | / |
| Guide Rod Material | / |
| Standardized Parts | Medium Carbon Steel(8.18 grade、Zinc Plating-black) |
| Main Bearing | / |
| Barbell Plate Storage Bar | / |
| Barbell Bar Diameter | / |
| Opt Weight Stack | / |
| Weight Stack Weight/Slice | / |
| Number of Packages | 1 |
| Packaged Form | Carton |
| 40 GP | 297 |
Up to 150kgPlate Loaded
Common questions
What is the maximum user weight?
150kg.
How much space does it need?
Its dimensions are 1368*566*849mm.
Want to see it in person or need a quote?Visit one of 50+ Afton dealers or message us on WhatsApp with your city so we can connect you with your nearest Afton dealer.
